RATTMMOTOR DC Brushless Spindle Motor Kit, 500W 48V Spindle Motor Air Cooled ER11, 12000RPM, 0.6N.m, 55MM+BLDC Driver Motor Speed Controller 600W Spindle Power Supply+Clamp Mount for CNC Router
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.prismcontracting.net
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$90.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.prismcontracting.net
Free 30-day returns Details
Product details
| Management number | 210095434 | Release Date | 2026/04/02 | List Price | $36.00 | Model Number | 210095434 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

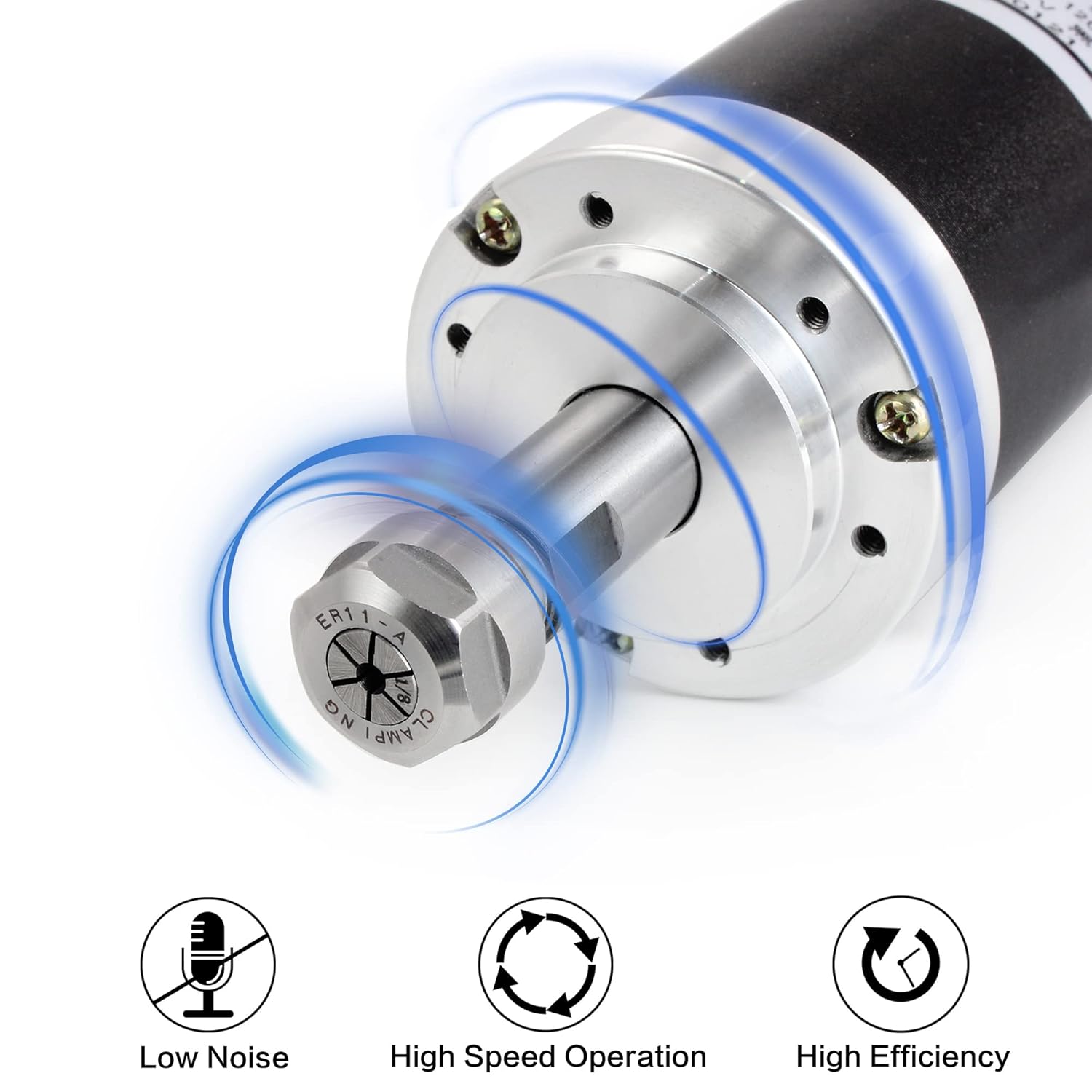

- 【Air Cooled Spindle】Power: 500W; Voltage: 48VDC; Speed: 12000r/min; Torque：0.6NM; Diameter: 55mm.Radial runout off :about 0.01-0.03mm;Insulation resistance: > 2 megohms; Dielectric strength of insulation: 400V.

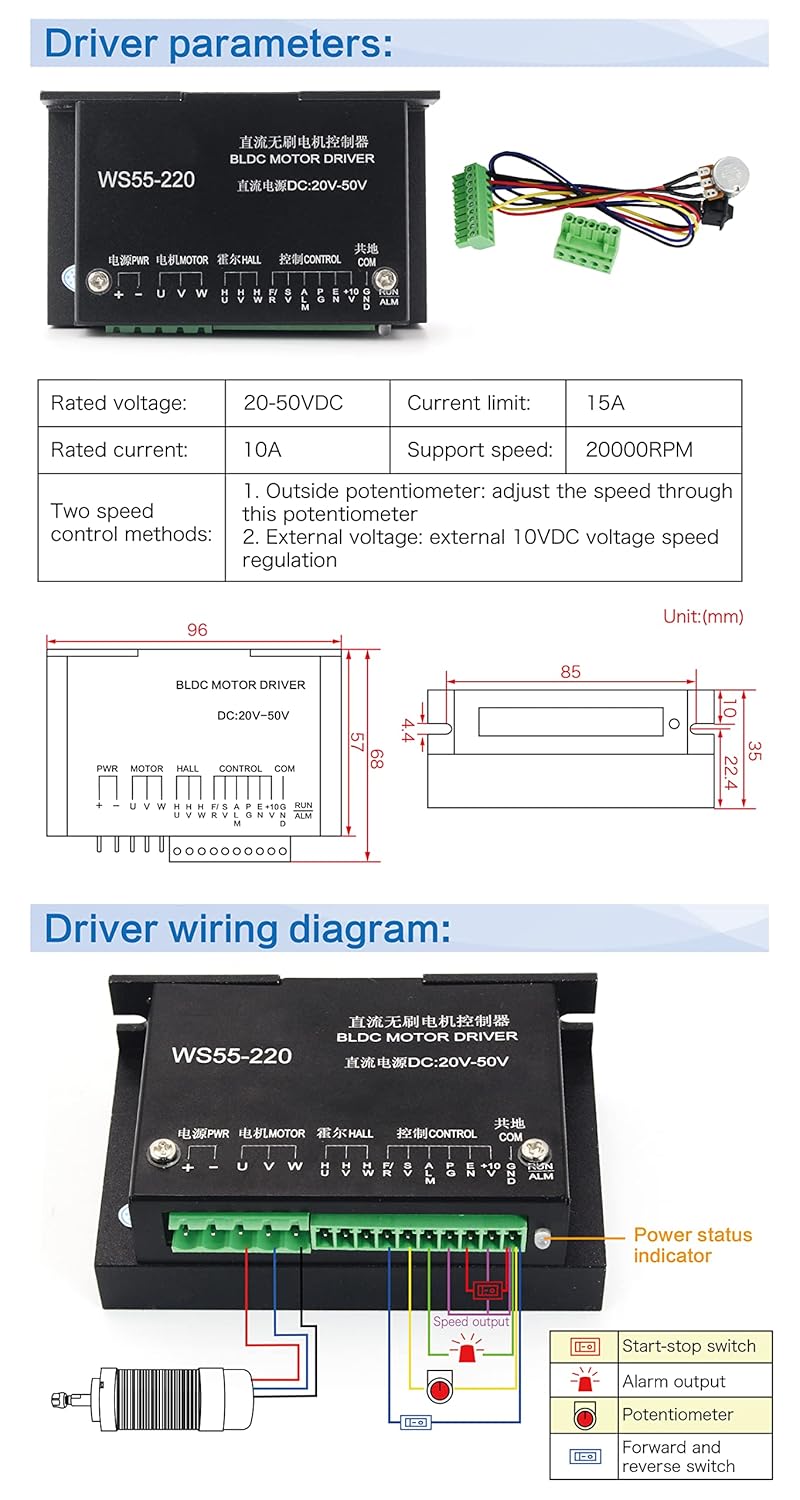

- 【Spindle Motor Drvier Features】Compatible with square wave with and without Hall, with potentiometer speed regulation function, external 10V voltage speed regulation function, switch function, speed output function, alarm output function, forward and reverse function, etc., and has a shell.
- 【Spindle Motor Drvier Parameters】Rated voltage: 20-50VDC; Rated current: 10A; Limiting current: 15A; Support speed: support speed above 20000RPM, the specific speed depends on the motor itself and the load.
- 【DC Switching Power Supply Parameters】Input voltage: 110V / 220V AC; Current: 0-12.5A; Input frequency: 50/60Hz; Power: 600W; output Voltage: DC 48V; Size; 215*115*50mm.
- 【Advantages-1】The brush is removed, and there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of the electric spark to the remote control radio equipment.
| Model | 500WBLDC-4 |
|---|---|
| Speed | 12000 RPM |
| Voltage | 48 Volts |
| Brand Name | RATTMMOTOR |
| Horsepower | 500 Watts |
| Item Weight | 2.7 Kilograms |
| Manufacturer | RTM |
| Material Type | Alloy Steel |
